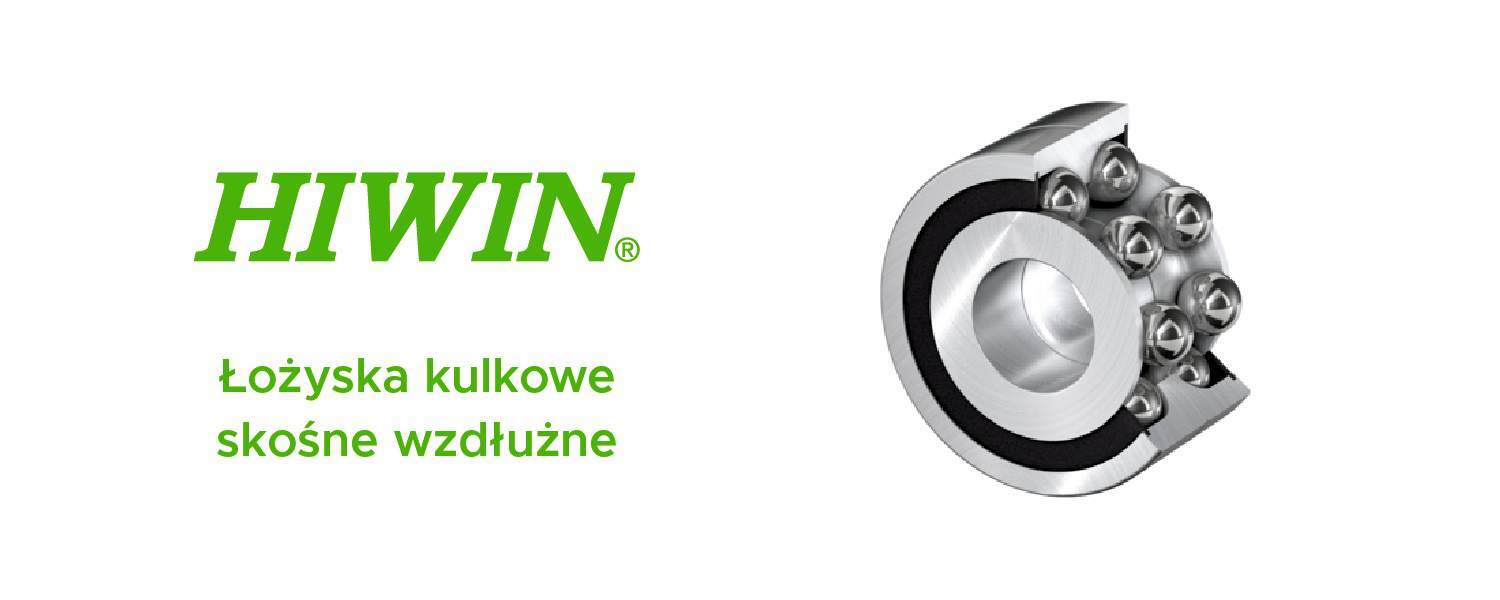

HIWIN oferuje różne dwurzędowe osiowe łożyska kulkowe skośne z pierścieniem zewnętrznym montowanym za pomocą kołnierza lub bez niego. Szczególnie nadają się do łożyskowania mechanizmów śrubowo-tocznych wraz z gniazdem łożyska zintegrowanym w aplikacji.
| Typ | d | D | B1 | A | J | d2 | I | m | n | d1 |
|---|---|---|---|---|---|---|---|---|---|---|
| ZKLFA0630 | 6 | 19 | 5 | 22 | 24 | 3,5 | 21 | 12 | 12 | |
| ZKLFA0640 | 6 | 24 | 6 | 27 | 32 | 4,5 | 27,5 | 16 | 14 | |
| ZKLFA0850 | 7 | 32 | 8 | 35 | 40 | 5,5 | 34,5 | 20 | 19 | |
| ZKLFA1050 | 10 | 32 | 8 | 35 | 40 | 5,5 | 34,5 | 20 | 21 | |
| ZKLFA1263 | 12 | 42 | 10 | 45 | 53 | 6,8 | 46 | 26,5 | 25 | |
| ZKLF1560 | 15 | 60 | 46 | 6,8 | 17 | 28 | ||||
| ZKLF1762 | 17 | 62 | 48 | 6,8 | 17 | 30 | ||||
| ZKLF2068 | 20 | 68 | 53 | 6,8 | 19 | 34,5 | ||||
| ZKLF2575 | 25 | 75 | 58 | 6,8 | 19 | 40,5 | ||||
| ZKLF3080 | 30 | 80 | 63 | 6,8 | 19 | 45,5 | ||||
| ZKLF30100 | 30 | 100 | 80 | 8,8 | 30 | 51 | ||||
| ZKLF3590 | 35 | 90 | 75 | 8,8 | 25 | 52 | ||||
| ZKLF40100 | 40 | 100 | 80 | 8,8 | 25 | 58 | ||||
| ZKLF40115 | 40 | 115 | 94 | 8,8 | 36 | 65 | ||||
| ZKLF50115 | 50 | 115 | 94 | 8,8 | 25 | 72 | ||||
| ZKLF50140 | 50 | 140 | 113 | 11 | 45 | 80 | ||||
| ZKLF60145 | 60 | 145 | 120 | 8,8 | 35 | 85 | ||||
| ZKLF70155 | 70 | 155 | 130 | 8,8 | 35 | 95 | ||||
| ZKLF80165 | 80 | 165 | 140 | 8,8 | 35 | 105 | ||||
| ZKLF90190 | 90 | 190 | 165 | 11 | 45 | 120 | ||||
| ZKLF100200 | 100 | 200 | 175 | 11 | 45 | 132 | ||||
| ZKLN0619 | 6 | 19 | 12 | |||||||
| ZKLN0624 | 6 | 24 | 14 | |||||||
| ZKLN0832 | 8 | 32 | 19 | |||||||
| ZKLN1034 | 10 | 34 | 21 | |||||||
| ZKLN1242 | 12 | 42 | 25 | |||||||
| ZKLN1545 | 15 | 45 | 28 | |||||||
| ZKLN1747 | 17 | 47 | 30 | |||||||
| ZKLN2052 | 20 | 52 | 34,5 | |||||||
| ZKLN2557 | 25 | 57 | 40,5 | |||||||
| ZKLN3062 | 30 | 62 | 45,5 | |||||||
| ZKLN3072 | 30 | 72 | 51 | |||||||
| ZKLN3572 | 35 | 72 | 52 | |||||||
| ZKLN4075 | 40 | 75 | 58 | |||||||
| ZKLN4090 | 40 | 90 | 65 | |||||||
| ZKLN5090 | 50 | 90 | 72 | |||||||
| ZKLN50110 | 50 | 110 | 80 | |||||||
| ZKLN60110 | 60 | 110 | 85 | |||||||
| ZKLN70120 | 70 | 120 | 95 | |||||||
| ZKLN80130 | 80 | 130 | 105 |
